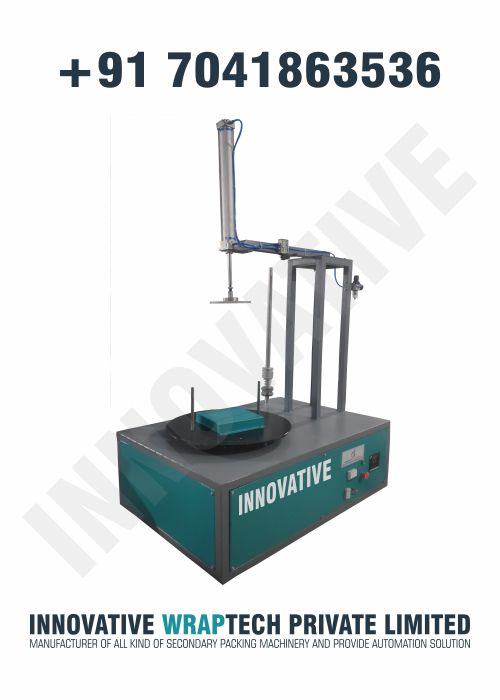

Simple Box Stretch Wrapping Machine With Holding system
The Simple Box Stretch Wrapping Machine With Holding System is designed for efficient and secure wrapping of carton boxes, packages, and other products using stretch film. The integrated holding system keeps the product stable during the wrapping process, ensuring uniform film application and superior load protection during storage and transportation.
This machine improves packaging quality, reduces manual effort, and increases productivity, making it ideal for warehouses, logistics centers, manufacturing units, and packaging industries.
Simple Box Stretch Wrapping Machine With Holding system
The Simple Box Stretch Wrapping Machine With Holding System is specially designed for secure and efficient wrapping of cartons, boxes, and packaged products. The integrated holding system keeps the box stable during the wrapping process, ensuring consistent film application and enhanced package stability. This machine helps protect products from dust, moisture, scratches, and handling damage during storage and transportation.
It is widely used in logistics, e-commerce, pharmaceuticals, food processing, FMCG, warehousing, and manufacturing industries.
Quotation Details
| Model | Description | Qty. | Price |
|---|---|---|---|
| BIM-005 | Box Stretch Wrapping Machine With Holding System | 1 | ₹65,000/- |
What are the key features of a Simple Box Stretch Wrapping Machine With Holding System?
Secure Holding System
An advanced holding mechanism firmly secures the box during wrapping, preventing movement and ensuring uniform packaging.
Efficient Stretch Wrapping
Applies stretch film evenly around the product for maximum load stability and protection.
Adjustable Packaging Settings
Supports different box dimensions and wrapping requirements for versatile industrial applications.
Robust Construction
Built with a heavy-duty mild steel structure and powder-coated finish for durability and long service life.
User-Friendly Operation
Simple controls allow operators to run the machine efficiently with minimal training.
Reduced Packaging Time
Automates the wrapping process, increasing productivity and reducing manual labor.
Cost-Effective Film Usage
Optimized film consumption helps lower packaging material costs.
Read More – Simpal_Box_Wrapping_Machine_with_holding_system
Key Features – Simple Box Stretch Wrapping Machine With Holding System
- High-Quality Construction: Built with robust materials for reliable performance and long service life.
- Saves Film Up to 20%: Optimized film usage helps reduce packaging material consumption and operating costs.
- Adjustable Film Tension Control: Enables precise film tension settings for secure and consistent wrapping.
- Separate Start, Reset & Emergency Stop Buttons: User-friendly controls ensure safe and convenient machine operation.
- Home Position Function: The turntable automatically stops at the same position after every cycle for easy loading and unloading.
- Easy-to-Load Stretch Film Unit: Designed for quick and hassle-free film replacement, minimizing downtime.
Read More – Box Stretch Wrapping Machine With Holding System | India
Where is a Simple Box Stretch Wrapping Machine With Holding System used?
The machine is suitable for packaging:
- Carton boxes
- Corrugated boxes
- E-commerce packages
- Pharmaceutical products
- Food and beverage cartons
- Electronic products
- Consumer goods
- Industrial components
Technical Specifications
| Specification | Details |
|---|---|
| Model | BIM-005 |
| Box Size Capacity | Length: 5 to 40 Inches |
| Width: 5 to 30 Inches | |
| Height: 5 to 30 Inches | |
| Any two dimensions should be less than 30 inches | |
| Weight Capacity | 10 to 60 kg |
| Power Supply | 415 V AC, 3 Phase + Neutral + Earthing, 50 Hz |
| Stretch Film Roll Size | Roll Width: Up to 24 Inches |
| Core ID: Up to 3 Inches | |
| Outer Diameter (OD): Up to 10 Inches | |
| Turntable Motor | 0.5 HP |
| Turntable Speed | Fixed Speed (Variable speed available at an extra cost) |
Technical Specifications
| Specification | Details |
|---|---|
| Pneumatic Holding System | Yes |
| Packing Material | LLDPE Stretch Film (23 Micron) |
| Film Carriage | Up to 30% Pre-Stretch |
| Control System | Counter Based |
| Turntable Diameter | Ø 600 mm |
| Body Structure | Heavy-Duty M.S. (Mild Steel) Structure |
| Body Finish | Powder Coated |
| Working Platform | Table Type Model |
| Machine Dimensions | 42″ × 36″ × 40″ (Approx.) |
What are the benefits of using a Simple Box Stretch Wrapping Machine With Holding System?
Enhanced Product Protection
Protects products against dust, moisture, dirt, and handling damage.
Improved Package Stability
The holding system keeps products firmly in place for secure transportation.
Increased Productivity
Speeds up packaging operations and improves workflow efficiency.
Reduced Labor Dependency
Minimizes manual intervention and operator fatigue.
Professional Packaging Appearance
Provides neat, uniform, and presentable packaging.
Lower Packaging Costs
Reduces film wastage and overall packaging expenses.
Frequently Asked Questions (FAQs)
1. What is a Simple Box Stretch Wrapping Machine with Holding System?
A Box Stretch Wrapping Machine with Holding System is used to securely wrap carton boxes and packaged products with stretch film while keeping the product stable during the wrapping process for better protection and consistency.
2. What box sizes can this machine handle?
The machine can wrap boxes ranging from 5 to 40 inches in length, 5 to 30 inches in width, and 5 to 30 inches in height. Any two dimensions should be less than 30 inches.
3. What is the weight capacity of the machine?
The machine is designed to handle products weighing between 10 kg and 60 kg.
4. Which packaging material is compatible with this machine?
The machine is compatible with 23-micron LLDPE stretch film, providing secure and reliable packaging for various applications.
5. Which industries can use this machine?
This machine is suitable for warehouses, logistics, e-commerce, FMCG, pharmaceuticals, electronics, manufacturing, and industrial packaging applications.
