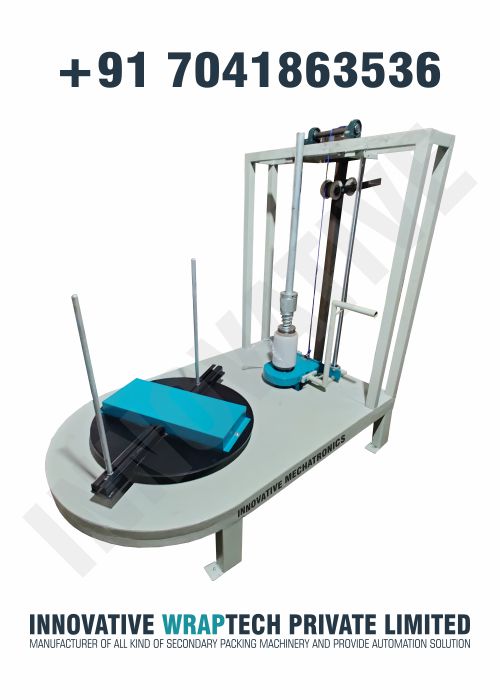

Box Stretch Wrapping Machine with Up-Down System and Holding System

Achieve Faster and More Secure Box Packaging

The Box Stretch Wrapping Machine with Up-Down System and Holding System delivers efficient, consistent, and high-quality packaging for carton boxes. This advanced machine automatically wraps boxes with stretch film while maintaining proper film tension and load stability. The integrated up-down wrapping mechanism ensures complete coverage of the box from top to bottom, while the holding system securely grips the film for a neat and reliable finish.

At Innovative WrapTech Pvt. Ltd., we manufacture and supply robust box wrapping machines that help businesses improve packaging productivity, reduce material consumption, and protect products during storage and transportation.

Product Information

What are the key features of a Box Stretch Wrapping Machine with Up-Down and Holding System?

✔ Complete Top-to-Bottom Wrapping

The up-down system moves the film carriage vertically, ensuring uniform stretch film coverage across the entire carton box.

✔ Advanced Holding System

The film holding mechanism securely holds the stretch film at the beginning and end of the wrapping cycle, creating a clean and professional wrap.

✔ Consistent Film Tension

The machine maintains uniform film tension throughout the wrapping process, improving package stability.

✔ Reduced Film Consumption

Optimized film stretching minimizes material usage and lowers packaging costs.

✔ High-Speed Packaging

Automates box wrapping operations and significantly increases packaging output.

✔ Durable Industrial Construction

Built with a heavy-duty steel structure for long-term reliability and continuous operation.

✔ Easy Operation

User-friendly controls allow operators to quickly set and manage wrapping parameters.

✔ Customizable Design

Available in different sizes and configurations to suit specific box dimensions and production requirements.

Box Dimension Required

• Length: 12″ to 40″
• Width: 12″ to 40″
• Height: 10″ to 60″
• Weight Capacity: Up to 70 kg

Mechanical Specification

• Heavy-duty MS fabricated structure
• Powder-coated body for corrosion resistance

Film Delivery System

• Automatic Up-Down Film Carriage System
• Up to 250% pre-stretch film carriage

Film Specification

• Stretch Film Roll Diameter: Up to 18″
• Film Roll ID: Up to 3″
• Film Roll OD: Up to 10″

Electrical Specification

• Power Supply: 415 V AC, 50 Hz
• 3 Phase + Neutral + Earthing

Read More – BIM-004 Box Stretch Wrapping Machine with Up-Down System and Holding System | Industrial Carton Wrapping Machine

Key Features

• Up-Down Film Carriage System wraps the entire box from bottom to top for complete coverage.
• Pneumatic Holding System keeps lightweight boxes stable during the wrapping process.
• Suitable for box sizes up to 30″ (L) × 12″ (W) × 16″ (H).
• Handles products with a weight capacity of up to 70 kg.
• Compatible with LLDPE stretch film.
• Features a pre-stretch film carriage with up to 250% film saving capability.
• Includes an adjustable air cylinder stroke to accommodate different box heights.
• Uses a counter-based control system for simple and efficient operation.
• Built with a heavy-duty MS fabricated structure for long-lasting durability.
• Features a powder-coated body for corrosion resistance.
• Provides a table-top working design for operator convenience.
• Includes a home position turntable stopping system for accurate positioning.
• Operates on a 415V, 3-Phase industrial power supply.
• Allows easy stretch film loading and replacement to reduce downtime.

Key Benefits

• Provides complete box coverage with automatic up-down film movement.
• Prevents lightweight cartons from lifting or shifting during wrapping with the pneumatic holding system.
• Saves up to 250% stretch film through advanced pre-stretch carriage technology.
• Reduces packaging costs by lowering stretch film consumption.
• Improves packaging consistency and wrapping quality for a professional finish.
• Protects products from dust, moisture, and transit damage during storage and transportation.
• Supports export packaging and long-distance transportation requirements.
• Reduces manual labor and operator fatigue by automating the wrapping process.
• Increases packing speed and daily production output to improve productivity.
• Ensures a long service life with its heavy-duty machine structure.
• Serves multiple industries, including e-commerce, FMCG, pharmaceutical, engineering, and logistics sectors.

Advantages

Save Film Up-To 300 % (For 50 Micron) Save Film Up-To 350 % ( For 23 Micron)

What are the benefits of using a Box Stretch Wrapping Machine with an Up-Down and Holding System?

Improve Package Protection

The machine securely wraps carton boxes, protecting products from dust, moisture, and external damage.

Increase Packaging Efficiency

Automated wrapping reduces manual labor and accelerates packaging operations.

Enhance Load Stability

Uniform film application prevents carton movement during handling and transportation.

Lower Packaging Costs

Efficient film usage reduces stretch film wastage and overall packaging expenses.

Maintain Consistent Wrapping Quality

The automated system delivers repeatable and reliable wrapping results for every package.

Reduce Operator Fatigue

Automation minimizes manual handling and improves workplace productivity.

Where is a Box Stretch Wrapping Machine with Up-Down and Holding System used?

The Box Stretch Wrapping Machine with Up-Down System and Holding System is widely used in:

• E-commerce Packaging Centers
• Logistics and Distribution Warehouses
• FMCG Industries
• Pharmaceutical Packaging
• Food and Beverage Industries
• Electronics Manufacturing
• Textile and Garment Industries
• Export Packaging Operations

Technical Specifications (BIM-004)

Why Choose Innovative WrapTech Pvt. Ltd.?

Industry Expertise

We design and manufacture advanced stretch wrapping solutions tailored to industrial packaging needs.

Superior Build Quality

Our machines deliver reliable performance even in demanding production environments.

Custom Engineering Solutions

We customize machine specifications according to customer requirements.

Global Supply Network

We serve customers across India and international markets with dependable packaging machinery.

Dedicated After-Sales Support

Our technical team provides installation assistance, training, and ongoing service support.

How can a Box Stretch Wrapping Machine with Up-Down and Holding System optimize your packaging process?

Choose the Box Stretch Wrapping Machine with Up-Down System and Holding System from Innovative WrapTech Pvt. Ltd. to achieve secure wrapping, lower packaging costs, and higher operational efficiency. The combination of advanced up-down movement and a reliable holding system ensures superior wrapping quality for every carton box.
