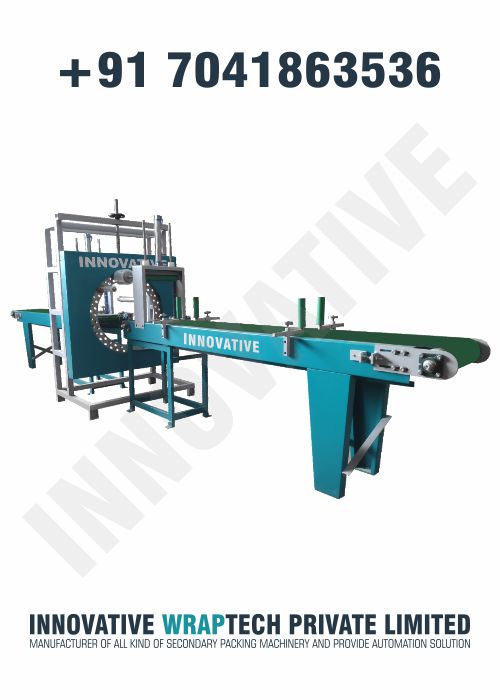

Orbital Stretch Wrapping Machine
An Orbital Stretch Wrapping Machine provides an efficient solution for wrapping long, bulky, and irregular-shaped products with stretch film. The machine uses a rotating orbital ring to wrap products such as doors, windows, pipes, aluminum profiles, furniture panels, timber, and other long materials.
It ensures uniform film application, protects products from dust, moisture, scratches, and transit damage, and reduces manual labor and packaging costs. Innovative WrapTech Pvt. Ltd. manufactures heavy-duty Orbital Stretch Wrapping Machines that deliver reliable performance, easy operation, and high-quality industrial packaging.
Orbital Stretch Wrapping Machine
An Orbital Stretch Wrapping Machine provides an efficient solution for wrapping long, bulky, and irregular-shaped products with stretch film. The machine uses a rotating orbital ring to wrap products such as doors, windows, pipes, aluminum profiles, furniture panels, timber, and other long materials. It ensures uniform film application, protects products from dust, moisture, scratches, and transit damage, and reduces manual labor and packaging costs. Innovative WrapTech Pvt. Ltd. manufactures heavy-duty Orbital Stretch Wrapping Machines that deliver reliable performance, easy operation, and high-quality industrial packaging.
| Description | Qty. | Price (INR) |
|---|---|---|
| Orbital Stretch Wrapping Machine | 1 | ₹7,20,000/- |
Box Dimension Required
- Suitable for long products with customizable dimensions.
- Handles lightweight and heavy products efficiently.
Mechanical Specification
- Heavy-duty powder-coated MS fabricated structure.
- Precision orbital ring with smooth roller conveyor.
Film Delivery System
- Adjustable film tension control.
- Uniform film overlap adjustment.
Film Specification
- Compatible with LLDPE/LDPE stretch film.
- Supports multiple film widths and thicknesses.
Electrical Specification
- Single Phase or Three Phase power supply.
- Industrial-grade control panel with safety protection.
| Parameter | Specification |
|---|---|
| Product Length | 1200 mm to 3000 mm |
| Product Width | 50 mm to 300 mm |
| Product Height | 50 mm to 300 mm |
| Product Weight | 20 kg to 100 kg |
| Stretch Film Core ID | 75 mm |
| Stretch Film Outer Diameter (OD) | Up to 150 mm |
| Stretch Film Width | 100 mm to 150 mm |
| Wrapping Material | LDPE Stretch Film (17–35 Micron) |
| Wrapping Ring Diameter | 500 mm |
| Ring Roller | Teflon Material |
| Power Ring Rollers | 2 Nos., MS Rubber Coated |
| Cutting Blade | HSS Material |
| Air Cylinder | Aira Make |
| Solenoid Valve | Aira Make |
| Roller Belt | Fenner Make |
| Machine Body | Heavy-Duty Powder Coated MS Structure |
| Film Clamping System | Automatic |
| Film Cutting System | Automatic |
| Holding System | Pneumatic Holding System |
| Film Overlap | Adjustable |
| Control System | PLC & HMI Controlled Operation |
| Safety System | Emergency Stop Button |
Why Is an Orbital Stretch Wrapping Machine Important in Modern Industrial Operations?
Industrial packaging plays a vital role in maintaining product quality from the production line to the customer’s location. Poor packaging often leads to scratches, moisture damage, dust contamination, and transit-related losses. An Orbital Stretch Wrapping Machine eliminates these issues by providing secure and uniform packaging.
The machine increases production speed by reducing manual wrapping time. It also applies consistent film tension, which reduces stretch film consumption and lowers packaging costs. Manufacturers can package products more efficiently while maintaining a professional appearance.
Modern logistics demand reliable packaging solutions that protect products throughout transportation and warehouse storage. Orbital stretch wrapping machines help businesses meet these requirements by improving package stability and minimizing product damage.
Companies also benefit from improved productivity, lower labor costs, better inventory handling, and reduced customer complaints caused by damaged products.
How Do You Choose the Right Orbital Stretch Wrapping Machine?
Selecting the right machine depends on your production requirements and the type of products you manufacture. Evaluating the following factors helps ensure you invest in the most suitable solution.
Product Size and Capacity
Choose a machine that matches the length, width, height, and weight of your products. A properly sized orbital ring ensures smooth wrapping and consistent film coverage.
Production Volume
Low-volume manufacturers may prefer manual or semi-automatic models, while high-volume industries benefit from fully automatic orbital wrapping machines that increase productivity and reduce labor dependency.
Wrapping Material Compatibility
Verify that the machine supports the stretch film required for your application. Most industrial machines are compatible with LDPE and LLDPE stretch films in different widths and thicknesses.
Automation Level
Select a manual, semi-automatic, or fully automatic machine based on your production capacity, labor availability, and operational goals. Higher automation increases efficiency while reducing operator involvement.
Machine Construction
A heavy-duty powder-coated MS structure with precision-engineered components ensures long service life, smooth operation, and minimal maintenance.
Budget and Return on Investment
Consider both the purchase price and long-term operating costs. A high-quality machine reduces packaging material waste, maintenance expenses, and labor costs, resulting in a faster return on investment.
Why Are Safety Standards and Operator Protection Essential?
Industrial packaging equipment should prioritize operator safety alongside productivity. Modern Orbital Stretch Wrapping Machines incorporate multiple safety features that protect operators and improve workplace safety.
Emergency stop buttons allow operators to halt machine operation immediately during unexpected situations. Safety guards help prevent accidental contact with moving components. Stable machine construction minimizes vibration during operation, while properly designed control systems improve operational reliability.
Manufacturers should also ensure proper electrical connections, machine grounding, routine maintenance, and operator training. Following recommended safety procedures extends machine life while reducing workplace risks and equipment downtime.
Investing in machines that comply with industrial safety standards helps businesses maintain safe production environments and achieve reliable long-term performance.
Why Do Manufacturers Prefer Professional-Grade Orbital Stretch Wrapping Machines?
Professional-grade Orbital Stretch Wrapping Machines deliver consistent performance under continuous industrial workloads. Manufacturers prefer these machines because they combine durability, efficiency, and packaging quality in a single solution.
Heavy-duty construction withstands demanding production environments, while precision-engineered film delivery systems provide uniform wrapping with minimal material consumption. Adjustable film tension allows operators to package different products without compromising protection.
Professional machines also reduce labor requirements, improve production speed, and create neat, export-quality packaging that enhances brand image. Their low maintenance design minimizes downtime, ensuring uninterrupted production.
Businesses investing in professional-grade equipment experience improved operational efficiency, lower packaging costs, better product protection, and higher customer satisfaction. These advantages make orbital stretch wrapping machines an essential investment for manufacturers focused on quality, productivity, and long-term growth.
Frequently Asked Questions
Q1. What is an Orbital Stretch Wrapping Machine?
It wraps long products with stretch film using a rotating orbital ring.
Q2. Which products can this machine wrap?
Doors, pipes, aluminum profiles, furniture panels, timber, windows, and long industrial products.
Q3. Which film is compatible?
LLDPE and LDPE stretch film.
Q4. Can the machine be customized?
Yes, according to product dimensions and packaging requirements.
Q5. Is it suitable for industrial use?
Yes, it is designed for continuous industrial packaging applications.
Q6. Why choose Innovative WrapTech?
We offer durable machines, customized solutions, competitive pricing, and reliable after-sales support.
