Manual Orbital Stretch Wrapping Machine
The Manual Orbital Stretch Wrapping Machine provides an efficient and economical solution for wrapping long, bulky, and irregular-shaped products with LLDPE stretch film. It uses a rotating ring mechanism to apply uniform film tension, ensuring secure and protective packaging. This machine protects products from dust, moisture, scratches, and transit damage while reducing film consumption and manual labor.
Its heavy-duty construction, user-friendly operation, and low maintenance design make it ideal for industries packaging doors, aluminum profiles, pipes, furniture, wooden panels, and other elongated products. Innovative WrapTech manufactures reliable machines that deliver consistent wrapping performance and long service life.
Manual Orbital Stretch Wrapping Machine
The Manual Orbital Stretch Wrapping Machine provides an efficient and economical solution for wrapping long, bulky, and irregular-shaped products with LLDPE stretch film. It uses a rotating ring mechanism to apply uniform film tension, ensuring secure and protective packaging. This machine protects products from dust, moisture, scratches, and transit damage while reducing film consumption and manual labor. Its heavy-duty construction, user-friendly operation, and low maintenance design make it ideal for industries packaging doors, aluminum profiles, pipes, furniture, wooden panels, and other elongated products. Innovative WrapTech manufactures reliable machines that deliver consistent wrapping performance and long service le.
| Description | Qty. | Price (INR) |
|---|---|---|
| Manual Ring Stretch Wrapping Machine | 1 | ₹1,85,000/- |
Manual Orbital Stretch Wrapping Machine for Secure and Cost-Effective Packaging

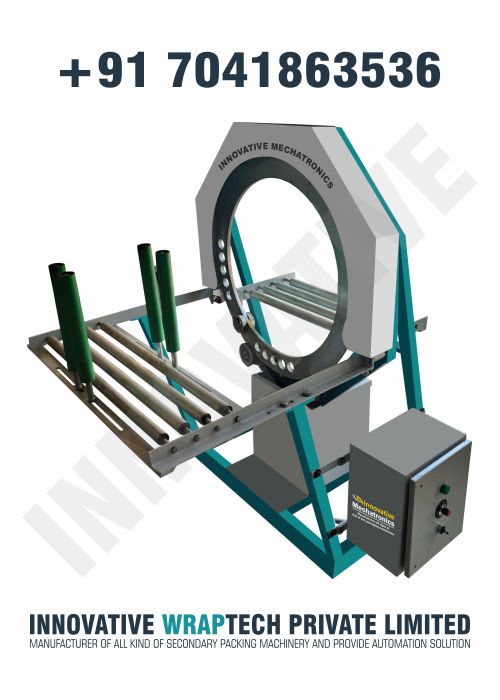

A Manual Orbital Stretch Wrapping Machine offers an efficient, economical, and reliable solution for wrapping long, bulky, and irregular-shaped products with stretch film. Manufacturers use this machine to protect products against dust, moisture, scratches, and damage during storage and transportation. The machine features a rotating ring that carries the stretch film around the stationary product, creating uniform and secure wrapping without moving heavy materials.
At Innovative WrapTech Pvt. Ltd., we manufacture high-performance Manual Orbital Stretch Wrapping Machines that simplify industrial packaging while reducing film consumption and labor effort. Our machines deliver consistent wrapping quality, easy operation, and long service life, making them suitable for industries handling doors, windows, panels, aluminum profiles, furniture, pipes, and other elongated products.
Why Choose a Manual Orbital Stretch Wrapping Machine?
Many industries require a flexible packaging solution that handles long products without investing in a fully automatic line. A Manual Orbital Stretch Wrapping Machine meets this requirement by combining simplicity with efficiency.
The operator places the product on support rollers, manually feeds the stretch film, and starts the ring rotation. The rotating ring wraps the product evenly while the operator controls product movement through the machine.
This method ensures:
- Uniform stretch film application
- Better product protection
- Reduced packaging cost
- Minimal maintenance
- Easy operation without complex automation
Manual Orbital Stretch Wrapping Machine
| Parameter | Specification |
|---|---|
| Product Length | 1000 mm to 3000 mm |
| Product Width | 50 mm to 300 mm |
| Product Height | 50 mm to 300 mm |
| Product Weight | 10 kg to 50 kg |
| Stretch Film Core ID | 75 mm |
| Stretch Film Outer Diameter (OD) | Up to 150 mm |
| Stretch Film Width | 100 mm to 150 mm |
| Wrapping Material | LDPE Stretch Film |
| Film Thickness | 17 to 35 Micron |
| Wrapping Ring Diameter | 500 mm |
| Ring Rollers | Teflon Material or MS Rubber Coated |
| Power Ring Rollers | 2 Nos., MS Rubber Coated |
| Roller Belt | Fenner Make |
| Machine Body | Heavy-Duty Powder Coated MS Structure |
| Infeed Conveyor Length | 1 Foot |
| Outfeed Conveyor Length | 1 Foot |
| Conveyor Width | 400 mm |
| Conveyor Type | Roller Conveyor |
| Parameter | Specification |
|---|---|
| Ring Motor | 1 HP |
| Ring Motor Drive | 1 HP Drive |
| Conveyor Height | Customizable |
| Safety System | Emergency Stop Button |
| Machine Weight | Approx. 200 kg |
| Power Requirement | 3 Phase + Neutral + Earthing |
| Floor Requirement | Proper Level Floor (As Per Machine Drawing) |
| Power Connection Cable | 4 Core, 2.5 sq. mm Wire (As Per Machine Requirement) |
| Air Connection | 8 mm PU Pipe |
How Does the Manual Orbital Stretch Wrapping Machine Work?
The machine follows a simple wrapping process:
Step 1: Load the Product
The operator places the product on the support rollers.
Step 2: Attach the Stretch Film
The stretch film is manually fixed to one end of the product.
Step 3: Start Ring Rotation
The ring begins rotating while carrying the stretch film roll.
Step 4: Move the Product
The operator manually pushes the product through the rotating ring.
Step 5: Complete Wrapping
The film covers the entire product evenly. The operator cuts the film manually after wrapping.
This straightforward operation minimizes downtime while maintaining excellent wrapping quality.
Key Features of Manual Orbital Stretch Wrapping Machine
Heavy-Duty Ring Structure
The machine uses a robust fabricated ring that delivers smooth rotation even during continuous industrial use.
Adjustable Wrapping Speed
Operators can control the wrapping speed according to product size and packaging requirements.
Uniform Film Tension
The film delivery system maintains proper tension throughout the wrapping cycle to eliminate wrinkles and loose packaging.
Low Maintenance Design
The machine contains fewer moving parts, reducing maintenance requirements and operating costs.
User-Friendly Operation
Simple controls allow operators to learn machine operation quickly without extensive training.
Compact Machine Footprint
The compact design saves valuable production floor space.
Strong MS Fabricated Body
The powder-coated mild steel structure provides durability, corrosion resistance, and long service life.
Benefits of Using Manual Orbital Stretch Wrapping Machine
Improve Product Protection
The machine protects products from dust, dirt, moisture, scratches, and handling damage.
Reduce Stretch Film Consumption
Controlled film tension optimizes film usage while maintaining secure packaging.
Increase Packaging Productivity
Operators wrap products faster than traditional manual wrapping methods.
Lower Packaging Cost
The machine minimizes labor effort and reduces packaging material wastage.
Ensure Professional Packaging
Uniform wrapping improves product presentation and enhances customer satisfaction.
Easy Installation
The machine requires minimal installation and becomes operational quickly.
Applications of Manual Orbital Stretch Wrapping Machine
Industries use this machine for packaging various products, including:
- Wooden Doors
- PVC Doors
- Aluminum Profiles
- UPVC Profiles
- Steel Pipes
- Plastic Pipes
- Furniture Components
- Window Frames
- Plywood Sheets
- MDF Boards
- Laminates
- Extrusion Profiles
- Metal Sections
- Decorative Panels
- Long Industrial Components
Industries We Serve
Our Manual Orbital Stretch Wrapping Machine serves numerous industries:
- Furniture Industry
- Door Manufacturing
- Window Manufacturing
- Pipe Industry
- Building Material Industry
- Steel Fabrication
- Aluminum Extrusion Industry
- Plastic Processing Industry
- Packaging Industry
- Logistics and Warehousing
Why Buy from Innovative WrapTech Pvt. Ltd.?
Innovative WrapTech designs every machine with industrial durability and customer-focused engineering.
Our advantages include:
- Premium quality manufacturing
- Customized machine solutions
- Heavy-duty construction
- Reliable technical support
- Competitive pricing
- Fast delivery
- Easy spare parts availability
- Excellent after-sales service
Box Dimension Required
- Suitable for long products with customizable length, width, and height according to application.
- Supports lightweight as well as heavy industrial products with stable wrapping performance.
Mechanical Specification
- Heavy-duty fabricated MS structure with powder-coated finish.
- Precision ring rotation mechanism with support rollers for smooth product movement.
Film Delivery System
- Adjustable mechanical film tension control.
- Smooth rotating film carriage for uniform wrapping.
Film Specification
- Compatible with LLDPE Stretch Film.
- Film roll width and thickness can be customized as per application.
Electrical Specification
- Single Phase / Three Phase power supply (as per machine model).
- Industrial-grade control panel with safety switches and overload protection.
Why Industries Prefer Manual Orbital Stretch Wrapping Machines
Companies choose manual ring wrapping because it offers flexibility without the high investment required for automatic systems. It allows manufacturers to wrap different product sizes quickly while maintaining packaging quality. The machine also reduces product damage during transportation, improving customer satisfaction and lowering replacement costs.
Frequently Asked Questions (FAQs)
Q1. What is a Manual Orbital Stretch Wrapping Machine?
A Manual Orbital Stretch Wrapping Machine wraps long and bulky products by rotating a stretch film around a stationary product. It provides secure packaging while reducing manual effort.
Q2. Which products can this machine wrap?
The machine wraps doors, aluminum profiles, PVC profiles, furniture panels, wooden boards, pipes, window frames, metal sections, and other elongated products.
Q3. Which stretch film does the machine use?
The machine uses standard LLDPE stretch film with different thicknesses and widths depending on the packaging application.
Q4. Is the machine suitable for heavy industrial use?
Yes. The machine features a heavy-duty fabricated structure designed for continuous industrial packaging operations.
Q5. Can the machine be customized?
Yes. Innovative WrapTech manufactures customized Manual Ring Stretch Wrapping Machines according to product dimensions and customer requirements.
Q6. Why should I choose Innovative WrapTech?
Innovative WrapTech provides durable machines, customized designs, competitive pricing, reliable technical support, fast delivery, and excellent after-sales service across India.
