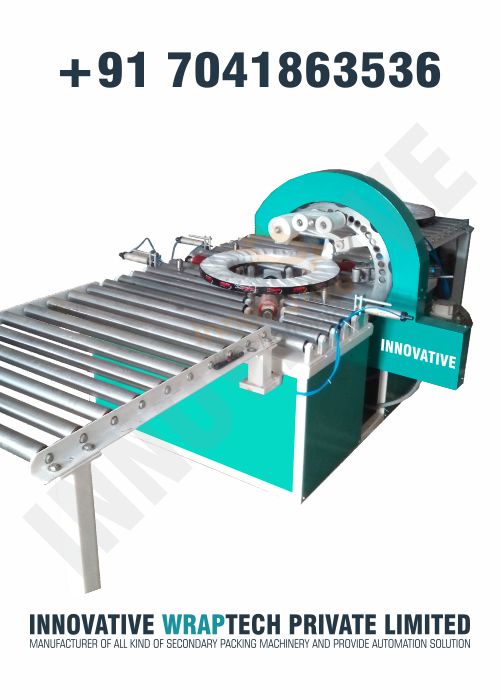

Fully Automatic Horizontal Coil Wrapping Machine
The Fully Automatic Horizontal Coil Wrapping Machine provides a high-speed, efficient, and reliable packaging solution for a wide range of coiled products. Manufacturers across industries use this machine to automate the packaging of steel coils, wire coils, cable coils, hose coils, plastic pipe coils, copper coils, aluminum coils, and other circular products.
At Innovative WrapTech, we manufacture advanced Fully Automatic Horizontal Coil Wrapping Machines that combine automation, durability, and precision. The machine applies stretch film, PE film, VCI film, woven fabric, or other suitable packaging materials around the coil, creating a secure protective barrier that safeguards products during storage, handling, and transportation.
Fully Automatic Horizontal Coil Wrapping Machine
The Fully Automatic Horizontal Coil Wrapping Machine provides a high-speed, efficient, and reliable packaging solution for a wide range of coiled products. Manufacturers across industries use this machine to automate the packaging of steel coils, wire coils, cable coils, hose coils, plastic pipe coils, copper coils, aluminum coils, and other circular products. The machine delivers consistent wrapping quality while minimizing manual labor and improving production efficiency.
At Innovative WrapTech, we manufacture advanced Fully Automatic Horizontal Coil Wrapping Machines that combine automation, durability, and precision. The machine applies stretch film, PE film, VCI film, woven fabric, or other suitable packaging materials around the coil, creating a secure protective barrier that safeguards products during storage, handling, and transportation.
Fully Automatic Horizontal Coil Wrapping Machine Price List
| Description | Quantity | Price |
|---|---|---|
| Fully Automatic Horizontal Coil Wrapping Machine (Most Suitable) | 1 Unit | ₹19,00,000/- |
| Fully Automatic Horizontal Coil Wrapping Machine with Auto Tapping (BOPP) | 1 Unit | ₹21,70,000/- |
What are the key features of a Fully Automatic Horizontal Coil Wrapping Machine?
Fully Automatic Operation
The machine performs loading, wrapping, film cutting, clamping, and unloading operations automatically, reducing manual involvement and increasing efficiency.
High-Speed Packaging Performance
The machine completes wrapping cycles rapidly and supports continuous production environments with high packaging demands.
PLC-Based Automation System
The PLC control system manages all machine functions precisely and ensures consistent packaging performance throughout production.
User-Friendly HMI Interface
Operators can monitor machine status, adjust settings, and control packaging parameters through the touchscreen HMI.
Automatic Film Cutting System
The machine automatically cuts the wrapping material at the end of each cycle and eliminates manual film handling.
Automatic Film Clamping System
The automatic clamping mechanism securely holds the film and prepares the machine for the next wrapping cycle.
Adjustable Wrapping Parameters
Operators can easily adjust ring speed, roller speed, overlap ratio, and film tension according to coil specifications.
Heavy-Duty Industrial Construction
The machine features a robust MS fabricated structure designed to withstand demanding industrial environments.
Variable Speed Control
The system allows users to optimize wrapping speeds for different coil sizes and packaging requirements.
Low Maintenance Design
Premium-quality components ensure long service life and reduce maintenance requirements.
Box Dimension Required:
- Coil Inner Diameter (ID): 300 mm – 450 mm
- Coil Outer Diameter (OD): 400 mm – 750 mm
- Coil Width: 50 mm – 120 mm
- Coil Weight Capacity: 20 kg – 150 kg
Mechanical Specification:
- Machine Type: Fully Automatic Horizontal Coil Wrapping Machine
- Machine Structure: Heavy-Duty MS Fabricated Structure
- Surface Finish: Powder-Coated Finish
- Rollers: MS Rollers with Rubber Coating (3 Powered Rollers)
- Conveyor System: Automatic Infeed, Outfeed & Machine Conveyor
- Production Speed: 35–45 Bundles per Hour
- Safety Guarding System: Available (Optional)
Film Delivery System:
- Film Wrapping System: Fully Automatic Film Wrapping
- Film Clamping System: Automatic Film Clamping
- Film Cutting System: Automatic Film Cutting
- Ring Drive: Variable-Speed Ring Drive
- Roller Drive: Variable-Speed Roller Drive
- Conveyor Integration: Automatic Coil Transfer Through Conveyor System
Film Specification:
- Compatible Film Types: Stretch Film
- Film Roll Inner Diameter (ID): Up to 75 mm
- Film Roll Outer Diameter (OD): Up to 130 mm
- Film Width: Up to 60 mm
- Core Size: 25 mm or 50 mm (Recommended)
Electrical Specification:
- Power Supply: 3 Phase + Neutral + Earthing (415V AC, 50 Hz)
- Power Consumption: 6 kW
- Control System: 8 Input/Output PLC with Relay-Based Controls
- PLC Brand: Delta / INVT / Equivalent
- HMI Touch Screen: Delta / INVT / Equivalent
- Air Requirement: 5 Bar Pressure, 2 CFM
- Electrical Connection: 4 Core, 2.5 mm Power Cable Required
What are the Benefits of Using Fully Automatic Horizontal Coil Wrapping Machine?
Increase Packaging Productivity
The machine automates the entire wrapping process and significantly increases production output.
Reduce Labor Costs
Automation minimizes manual packaging operations and lowers labor requirements.
Improve Packaging Consistency
The machine applies wrapping material uniformly and delivers identical packaging quality for every coil.
Protect Products During Transportation
The secure wrapping process protects coils from dust, moisture, dirt, corrosion, and handling damage.
Minimize Packaging Material Consumption
The controlled wrapping process optimizes film usage and reduces packaging costs.
Improve Workplace Safety
The automated operation reduces manual handling and minimizes operator fatigue and injury risks.
Enhance Product Appearance
The machine produces neatly wrapped coils that improve product presentation and customer satisfaction.
Support Continuous Production
The machine operates continuously and supports high-volume industrial packaging applications.
Technical Specifications
| Specification | Details |
|---|---|
| Power Requirement | 3 Phase + Neutral + Earthing (415V AC, 50 Hz) |
| Power Consumption | 6 kW |
| Coil Size | ID: 300–450 mm, OD: 400–750 mm, Width: 50–120 mm |
| Coil Weight | 20–150 kg |
| Film Roll Size | ID: Up to 75 mm, OD: Up to 130 mm, Width: Up to 60 mm |
| Ring Motor | 1 HP |
| Roller Motor | 2 HP |
| Infeed Conveyor Motor | 2 HP |
| Outfeed Conveyor Motor | 2 HP |
| Machine Conveyor Motor | 1 HP |
| Ring Drive | 1 HP |
| Roller Drive | 0.5 HP |
| Infeed Conveyor Drive | 2 HP |
| Outfeed Conveyor Drive | 2 HP |
| Machine Conveyor Drive | 1 HP |
| Operation Mode | Fully Automatic |
| Wrapping Material | Stretch Film / PE Film / VCI Film |
Additional Technical Specifications Machine
| Specification | Details |
|---|---|
| Control System | 8 Input/Output PLC, Relay-Based Control System |
| PLC Brand | Delta / INVT / Equivalent Brand |
| HMI Touch Screen | Delta / INVT / Equivalent Brand |
| Automatic Film Cutting System | Available |
| Automatic Film Clamping System | Available |
| Production Speed | 35–45 Bundles per Hour |
| Machine Construction | Heavy-Duty MS Fabricated Structure |
| Surface Finish | Powder Coated |
| Safety Guarding System | Available (Optional) |
| Cutter Type | HSS Material Cutter |
| Rollers | MS Rollers with Rubber Coating (3 Powered Rollers) |
| Roller Belt | 25 mm Fenner Belt |
| Electrical Requirement | 3 Phase + Neutral + Earthing |
| Air Requirement | 5 Bar Pressure, 2 CFM |
| Power Cable Requirement | 4 Core, 2.5 sq. mm Wire |
| Floor Requirement | Proper Industrial Floor |
What are the Important Advantages of Fully Automatic Horizontal Coil Wrapping Machine?
✔ Automate complete coil packaging operations
✔ Increase packaging speed and operational efficiency
✔ Deliver consistent and professional wrapping quality
✔ Reduce labor dependency and operational costs
✔ Protect coils from environmental contamination
✔ Improve transportation and storage safety
✔ Reduce packaging material wastage
✔ Support continuous industrial production
✔ Improve warehouse handling efficiency
✔ Enhance overall product presentation
✔ Increase return on investment through automation
✔ Ensure reliable long-term machine performance
What are the Applications of Fully Automatic Horizontal Coil Wrapping Machine?
Steel Coil Industry
Manufacturers use the machine to wrap steel coils securely for storage and transportation.
Wire Manufacturing Industry
Wire producers package wire coils efficiently while protecting them from dust and damage.
Cable Industry
Cable manufacturers use the machine to package cable coils for safe handling and shipment.
Copper Coil Industry
The machine protects copper coils from oxidation, moisture, and contamination.
Aluminum Coil Industry
Manufacturers use the machine to package aluminum coils with consistent wrapping quality.
Hose and Pipe Industry
The machine securely wraps hose coils and pipe coils for transportation and warehousing.
Plastic Extrusion Industry
Plastic manufacturers package coiled products safely while improving packaging efficiency.
Export Packaging Industry
Exporters rely on the machine to meet international packaging standards and prevent product damage during overseas transportation.
Read More – Fully_Automatic_horizotal_coii _wrapping_machine
What are the Advanced Automation Features?
Intelligent PLC Control
The intelligent PLC system controls all machine operations and ensures accurate packaging cycles.
Touchscreen HMI Operation
The user-friendly interface simplifies machine operation and allows quick parameter adjustments.
Automatic Film Feeding
The machine automatically feeds wrapping material and maintains uninterrupted production.
Automatic Product Handling
Integrated conveyor systems automatically move products through the packaging process.
Error Detection System
The control system monitors machine performance and alerts operators to operational issues.
Emergency Safety Functions
Multiple safety features protect operators and equipment while maintaining productivity.
Why Choose Innovative WrapTech?
Innovative WrapTech manufactures high-performance Fully Automatic Horizontal Coil Wrapping Machines designed for modern industrial packaging requirements. Our machines combine advanced automation technology, heavy-duty construction, and reliable performance to help businesses improve productivity and reduce packaging costs.
Our Strengths
✔ Advanced PLC and HMI automation
✔ Heavy-duty industrial machine construction
✔ High-speed packaging performance
✔ Automatic film cutting and clamping
✔ Custom-built machine solutions
✔ Energy-efficient operation
✔ Low maintenance requirements
✔ Reliable after-sales support
✔ Genuine spare parts availability
✔ Proven expertise in packaging automation
FAQs
1. What is a Fully Automatic Horizontal Coil Wrapping Machine?
A Fully Automatic Horizontal Coil Wrapping Machine is an automated packaging system that wraps coils with stretch film or other packaging materials to protect them during storage, handling, and transportation.
2. Which products can be packaged using a Fully Automatic Horizontal Coil Wrapping Machine?
The machine can package steel coils, wire coils, cable coils, hose coils, pipe coils, copper coils, aluminum coils, and other circular or coiled products.
3. What are the benefits of using a Fully Automatic Horizontal Coil Wrapping Machine?
The machine increases packaging speed, reduces labor costs, improves packaging consistency, minimizes film wastage, and enhances product protection.
4. Does the machine include automatic film cutting and clamping systems?
Yes, the machine comes equipped with automatic film cutting and automatic film clamping systems to ensure uninterrupted and efficient packaging operations.
5. Can the Fully Automatic Horizontal Coil Wrapping Machine integrate with production lines?
Yes, the machine can integrate with conveyors, loading systems, unloading systems, and other packaging equipment to create a fully automated packaging line.
