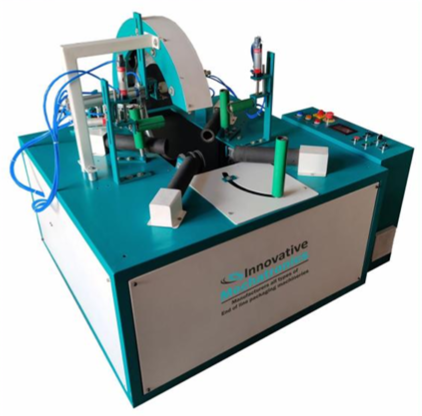

Cable Wrapping Machine Manufacturer in India
Innovative WrapTech Pvt. Ltd. manufactures high-performance Cable Wrapping Machines in India to improve packaging speed, reduce labor costs, and protect cable coils during storage and transportation. A Cable Wrapping Machine automatically wraps stretch film, HDPE film, or other protective materials around cable coils to create secure, stable, and professional packaging.
Manufacturers, electrical cable producers, telecom companies, warehouses, and export businesses use Cable Wrapping Machines to streamline their packaging operations and maintain product quality.
Cable Wrapping Machine Manufacturer in India
Innovative WrapTech Pvt. Ltd. manufactures high-performance Cable Wrapping Machines in India to improve packaging speed, reduce labor costs, and protect cable coils during storage and transportation.
A Cable Wrapping Machine automatically wraps stretch film, HDPE film, or other protective materials around cable coils to create secure, stable, and professional packaging. The machine helps industries protect cables from dust, moisture, scratches, UV exposure, and handling damage while improving overall packaging efficiency.
Manufacturers, electrical cable producers, telecom companies, warehouses, and export businesses use Cable Wrapping Machines to streamline their packaging operations and maintain product quality.
Product Information
| Description | Quantity | Price |
|---|---|---|
| Cable Wrapping Machine | 1 Unit | ₹4,00,000/- |
What are the advantages of using a Cable Wrapping Machine?
A Cable Wrapping Machine offers numerous advantages for businesses that manufacture, package, and transport cable coils. It automates the packaging process and helps industries improve productivity, reduce operational costs, and protect products throughout the supply chain.
One of the biggest advantages is faster packaging speed. The machine wraps cable coils quickly and consistently, allowing manufacturers to increase production output and meet customer demands efficiently.
The machine also reduces manual labor requirements. Instead of manually wrapping heavy cable coils, operators can automate the process and reduce physical effort. This improves workplace safety and minimizes operator fatigue.
Technical Specifications
| Specification | Details |
|---|---|
| Machine Needed Power | 3 Phase + Neutral + Earthing (415V AC, 50 Hz) |
| Power Consumption | 2 kW |
| Cable Coil Size (Product) | ID: 250 mm to 400 mm OD: 350 mm to 650 mm Width: 80 mm to 150 mm |
| Coil Weight Capacity | 10 kg to 30 kg |
| Stretch Film Roll Size | ID: Up to 75 mm (25 mm or 50 mm core recommended) OD: Up to 130 mm Width: Up to 60 mm |
| Motors | Ring Motor: 1 HP Roller Motor: 0.5 HP |
| Drives | Ring Drive: 1 HP Roller Drive: 0.5 HP |
| Machine Dimensions | 1250 × 1250 × 1250 mm (Approx.) |
| Machine Weight | 400 kg (Approx.) |
| Working Table Size | 700 mm (Approx.) |
| Side Tapping System | Not Available |
Additional Technical Specifications
| Specification | Details |
|---|---|
| Control System | Combo PLC, 8 Input/Output PLC, Relay and Technical Make Switches |
| Automation | PLC-Based Automation System |
| PLC Brand | Delta / INVT / Equivalent Brand (subject to availability) |
| HMI Touch Screen | Delta / INVT / Equivalent Brand (subject to availability) |
| Automatic Film Cutting System | Available |
| Automatic Film Clamping System | Available |
| Auto Ejection System | Available (Optional) |
| Production Speed | Variable Speed (40 to 45 Bundles per Hour) |
| Machine Construction | Heavy-Duty MS Fabricated Structure |
| Surface Finish | Powder Coated |
| Safety Guarding System | Available (Optional) |
| Cutter | HSS Material Cutter |
| Rollers | MS Rollers with Rubber Coating (3 Powered Rollers) |
| Belt Roller Belt | 25 mm Fenner Belt |
| Electrical Requirement | 3 Phase Connection + Neutral + Earthing |
| Floor Requirement | Proper Industrial Floor |
| Air Requirement | 5 Bar Pressure, 2 CFM |
| Power Cable Requirement | 4 Core, 2.5 mm Wire (As per machine requirement) |
Which types of cables can this machine package?
A Cable Wrapping Machine can package various types of cable coils used in different industries.
Manufacturers design these machines to handle multiple cable dimensions, weights, and packaging requirements.
The machine can package:
- Electrical cable coils
- Power cables
- Control cables
- Telecom cables
- Fiber optic cables
- Copper wire coils
- Flexible cable coils
- Industrial cables
- Building wires
- Communication cables
Operators can adjust the machine settings according to cable diameter, coil width, and product weight.
This flexibility allows businesses to package different products using a single machine and eliminate the need for multiple packaging systems.
Is the Cable Wrapping Machine easy to operate?
Yes. A Cable Wrapping Machine is easy to operate and requires minimal operator training.
Modern machines use PLC-based control systems and user-friendly interfaces that simplify machine operation.
Operators can quickly adjust:
- Wrapping speed
- Film overlap
- Film tension
- Stretch ratio
- Production settings
Many machines also include automatic functions such as:
- Automatic film cutting
- Automatic film clamping
- Automatic wrapping cycles
- Automatic ejection systems
These features reduce manual intervention and improve productivity.
The machine also includes safety features that protect operators during operation and help maintain a safe working environment.
Key Features
- Automatic Cable Wrapping Machine designed for secure and efficient cable coil packaging.
- Compatible with HDPE film, LDPE film, and stretch film wrapping materials.
- Features a PLC-based control system for reliable and consistent operation.
- Allows adjustable film overlap for customized wrapping quality.
- Offers an adjustable stretch ratio to optimize film utilization.
- Includes an automatic film cutting and holding system.
- Equipped with an advanced paper reel holding system.
- Features an advanced stretch film holding system for smooth operation.
- Uses AC drive-controlled wrapping ring and roller motors.
- Includes heavy-duty rubber-coated rollers for stable cable coil rotation.
- Uses an HSS material cutter for precise film cutting.
- Performs automatic wrapping, rotation, cutting, and ejection cycles.
- Delivers vibration-free machine operation.
- Features a powder-coated body for corrosion resistance and long service life.
- Provides a compact industrial design that requires minimal floor space.
Benefits
- Protects cable coils from dust, moisture, and handling damage.
- Creates a clean, neat, and professional packaging appearance.
- Reduces manual labor and operator dependency.
- Increases packaging speed and overall production efficiency.
- Delivers uniform wrapping quality for every cable coil.
- Minimizes packaging material wastage.
- Improves product handling and warehouse safety.
- Reduces transportation damage during dispatch.
- Supports export-quality packaging requirements.
- PLC automation minimizes human errors.
- Heavy-duty construction ensures long-term performance.
- Requires low maintenance and simple operation.
Read More – cable wrapping machine
How do I choose the right Cable Wrapping Machine?
Choosing the right Cable Wrapping Machine requires evaluating your packaging requirements and future production needs.
Several factors help determine the best machine for your business.
Cable Dimensions
Consider the cable coil diameter, width, and weight.
Production Capacity
Estimate the number of cable coils you need to package every hour.
Automation Level
Choose between semi-automatic and fully automatic systems based on your production volume.
Packaging Material Compatibility
Ensure the machine supports your preferred packaging materials, such as stretch film, HDPE film, or LDPE film.
Available Floor Space
Measure your installation area before purchasing the machine.
Future Expansion
Select a machine that can support future production growth.
Technical Support
Choose a manufacturer that offers installation, operator training, and after-sales service.
Selecting the right machine improves efficiency and delivers long-term operational benefits.
Which is the best Cable Wrapping Machine manufacturer in India?
Innovative WrapTech Pvt. Ltd. is one of the leading Cable Wrapping Machine manufacturers in India. The company manufactures advanced industrial packaging machines that help businesses improve productivity, reduce packaging costs, and protect cable coils during storage and transportation.
The company serves industries such as electrical cable manufacturing, telecom, wire production, logistics, and industrial manufacturing.
Why choose Innovative WrapTech Pvt. Ltd.?
High-Quality Manufacturing
The company uses premium-grade materials and reliable components.
Customized Packaging Solutions
Machines are customized according to cable size and production requirements.
Technical Support
The company provides installation support, operator training, and spare parts assistance.
Industry Experience
Years of experience help deliver practical and efficient packaging solutions.
PAN India Service Support
The company offers service support throughout India.
Competitive Pricing
Businesses receive cost-effective solutions without compromising quality.
How does a Cable Wrapping Machine improve packaging efficiency?
A Cable Wrapping Machine significantly improves packaging efficiency by automating repetitive packaging tasks.
Manual cable wrapping consumes time, requires more labor, and often produces inconsistent results. Automated packaging eliminates these challenges.
The machine improves efficiency by:
Increasing Packaging Speed
The machine wraps more cable coils in less time.
Reducing Labor Dependency
Automation reduces the need for manual handling.
Improving Wrapping Consistency
Every cable coil receives uniform wrapping quality.
Minimizing Film Wastage
Adjustable film overlap optimizes material usage.
Reducing Product Damage
Secure packaging protects products during storage and transportation.
Improving Workflow
Continuous operation keeps production lines running smoothly.
Lowering Operational Costs
Reduced labor and material consumption decrease overall expenses.
Businesses that invest in a Cable Wrapping Machine can increase productivity, improve product protection, and achieve higher operational efficiency.
Frequently Asked Questions
1. What is a Cable Wrapping Machine?
A Cable Wrapping Machine is an industrial packaging machine that automatically wraps protective film around cable coils to protect them during storage, handling, and transportation.
2. Which types of cables can a Cable Wrapping Machine package?
The machine can package electrical cables, power cables, telecom cables, control cables, fiber optic cables, industrial cables, and flexible cable coils.
3. What are the advantages of using a Cable Wrapping Machine?
The machine increases packaging speed, reduces labor costs, minimizes film wastage, improves product protection, and increases overall operational efficiency.
4. Is a Cable Wrapping Machine easy to operate?
Yes. The machine features a PLC-based control system and user-friendly controls that require minimal operator training.
5. Which is the best Cable Wrapping Machine manufacturer in India?
Innovative WrapTech Pvt. Ltd. is one of the trusted Cable Wrapping Machine manufacturers in India, offering customized industrial packaging solutions, reliable performance, and nationwide support.
