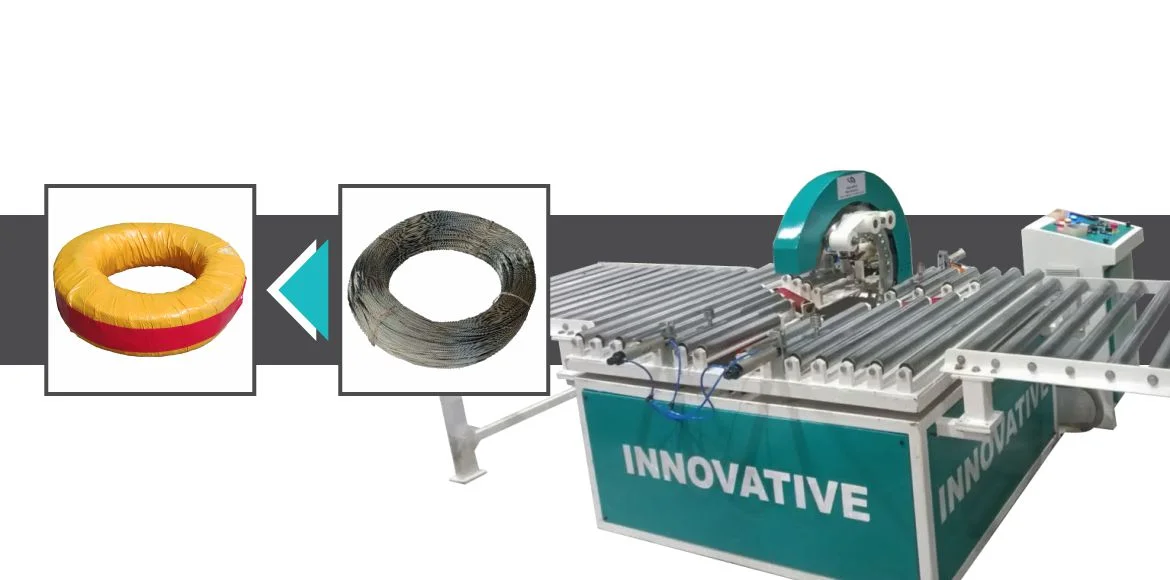

Binding Wire Wrapping Machine Manufacturer in India
A Binding Wire Wrapping Machine is an industrial packaging machine designed to wrap protective film around binding wire coils. The machine securely packages coils by applying multiple layers of stretch film or plastic film to create a strong and stable package. The machine rotates the wire coil while simultaneously applying wrapping material around its surface. This process creates uniform packaging and prevents the wire from becoming loose, damaged, or exposed to environmental conditions.
Binding Wire Wrapping Machine Manufacturer in India
Innovative WrapTech Pvt. Ltd. manufactures high-performance Binding Wire Wrapping Machines that help industries package binding wire coils quickly, safely, and efficiently. This machine automatically wraps stretch film, HDPE film, or LDPE film around binding wire coils to protect them from dust, moisture, rust, and handling damage during storage and transportation.
Manufacturers, wire processing plants, steel industries, and construction material suppliers use Binding Wire Wrapping Machines to improve packaging quality, reduce manual labor, and increase production efficiency. The machine delivers consistent wrapping results and creates a professional packaging appearance that enhances product presentation and protection.
Modern industries demand reliable and cost-effective packaging solutions. A Binding Wire Wrapping Machine helps businesses meet these requirements by automating the packaging process and reducing packaging errors.
Binding Wire Wrapping Machine Price List
| Description | Quantity | Price |
|---|---|---|
| Binding Wire Wrapping Machine | 1 Unit | ₹3,80,000/- |
| Binding Wire Wrapping Machine with Manual Tapping (HDPE) | 1 Unit | ₹3,90,000/- |
| Binding Wire Wrapping Machine with Auto Tapping (BOPP) | 1 Unit | ₹4,20,000/- |
What are the advantages of using a Binding Wire Wrapping Machine?
A Binding Wire Wrapping Machine offers several advantages for businesses that manufacture, package, and transport wire coils. It automates the packaging process and helps industries improve efficiency, reduce costs, and protect products.
One of the biggest advantages is faster packaging speed. The machine wraps wire coils quickly and consistently, allowing businesses to increase production output and meet customer demands efficiently.
The machine also reduces manual labor requirements. Instead of manually wrapping heavy wire coils, operators can automate the process and minimize physical effort. This reduces operator fatigue and improves workplace safety.
Another major advantage is better product protection. The machine securely wraps coils with HDPE film, LDPE film, or stretch film to protect them from dust, moisture, dirt, rust, and handling damage.
Businesses can also reduce packaging costs. Advanced pre-stretch technology optimizes film usage and minimizes material wastage.
Technical Specifications
| Specification | Details |
|---|---|
| Machine Needed Power | 3 Phase + Neutral + Earthing (415V AC, 50 Hz) |
| Power Consumption | 2 kW |
| Coil Size (Product) | ID: 220 mm to 350 mm OD: 350 mm to 550 mm Width: 50 mm to 120 mm |
| Coil Weight Capacity | 15 to 25 kg |
| Stretch Film Roll Size | ID: Up to 75 mm (25 mm or 50 mm core recommended) OD: Up to 130 mm Width: Up to 60 mm |
| Motors | Ring Motor: 1 HP Roller Motor: 0.5 HP |
| Drives | Ring Drive: 1 HP Roller Drive: 0.5 HP |
| Machine Dimensions | 1250 × 1250 × 1250 mm (Approx.) |
| Machine Weight | 400 kg (Approx.) |
| Working Table Size | 700 mm (Approx.) |
Additional Technical Specifications
| Specification | Details |
|---|---|
| Control System | Combo PLC, 8 Input/output PLC, Relay and Technical Make Switches |
| Automation | PLC Based Automation System |
| PLC Brand | Delta / INVT / Equivalent Brand (subject to availability) |
| HMI Touch Screen | Delta / INVT / Equivalent Brand (subject to availability) |
| Automatic Film Cutting System | Available |
| Automatic Film Clamping System | Available |
| Auto Ejection System | Available (Optional) |
| Production Speed | Variable Speed (40 to 45 Bundles per Hour) |
| Machine Construction | Heavy-Duty MS Fabricated Structure |
| Surface Finish | Powder Coated |
| Safety Guarding System | Available (Optional) |
| Cutter | HSS Material Cutter |
| Rollers | MS Rollers with Rubber Coating (3 Powered Rollers) |
| Belt Roller Belt | 25 mm Fenner Belt |
| Electrical Requirement | 3 Phase Connection + Neutral + Earthing |
| Floor Requirement | Proper Industrial Floor |
| Air Requirement | 5 Bar Pressure, 2 CFM |
Can the machine package different wire coil sizes?
Most Binding Wire Wrapping Machines can package different wire coil sizes and weights.
Manufacturers design these machines with adjustable settings to accommodate various product dimensions. Businesses can customize wrapping parameters according to their specific production requirements.
The machine allows operators to adjust:
- Coil diameter
- Coil width
- Wrapping speed
- Film overlap
- Film tension
- Stretch ratio
This flexibility enables manufacturers to package multiple types of wire coils using a single machine.
Does the machine improve product safety during transportation?
A Binding Wire Wrapping Machine significantly improves product safety during storage, handling, and transportation.
Wire coils often face challenges such as vibration, movement, moisture exposure, and accidental impacts during transit. Proper wrapping minimizes these risks and keeps products secure.
The machine tightly wraps protective film around the wire coil and creates a stable package.
The wrapping process improves transportation safety in several ways.
Prevents Product Movement
The protective film holds the wire coil firmly and prevents it from shifting during transportation.
Protects Against Dust and Moisture
The film creates a protective barrier against environmental contaminants.
Reduces Surface Damage
The machine protects products from scratches, dents, and handling damage.
Maintains Coil Shape
Secure wrapping helps preserve the original shape of the wire coil.
Supports Export Packaging
The machine creates strong packaging suitable for domestic and international shipping.
How Does a Binding Wire Wrapping Machine Work?
A Binding Wire Wrapping Machine follows a simple and efficient operating process.
Step 1: Load the Wire Coil
The operator places the binding wire coil onto the machine’s roller system or designated wrapping area.
Step 2: Set the Wrapping Parameters
The operator selects the required settings, including wrapping speed, film overlap, and film tension.
Step 3: Start the Machine
The machine rotates the wire coil while simultaneously applying stretch film or protective packaging material.
Step 4: Complete the Wrapping Cycle
The machine wraps the coil uniformly to achieve the desired packaging thickness.
Step 5: Remove the Wrapped Coil
After completing the cycle, the operator removes the wrapped product and prepares it for storage or transportation.
The entire process significantly reduces packaging time and improves packaging consistency.
Read More – binding wire wrapping machine
Key Features
- Automatic Binding Wire Wrapping Machine designed for secure and efficient coil packaging.
- Compatible with HDPE film, LDPE film, and stretch film wrapping materials.
- Features a PLC-based control system for reliable and consistent operation.
- Allows adjustable film overlap for customized wrapping quality.
- Offers an adjustable stretch ratio to optimize film utilization.
- Includes an automatic film cutting and holding system.
- Equipped with an advanced paper reel holding system.
- Features an advanced stretch film holding system for smooth operation.
- Uses AC drive-controlled wrapping ring and roller motors.
- Includes heavy-duty rubber-coated rollers for stable coil rotation.
- Uses an HSS material cutter for precise film cutting.
- Performs automatic wrapping, rotation, cutting, and ejection cycles.
- Delivers vibration-free machine operation.
- Features a powder-coated body for corrosion resistance and long service life.
- Provides a compact industrial design that requires less floor space.
Benefits
- Protects wire coils from dust, moisture, and handling damage.
- Creates a clean, neat, and professional packaging appearance.
- Reduces manual labor and operator dependency.
- Increases packaging speed and overall production efficiency.
- Delivers uniform wrapping quality for every coil.
- Minimizes packaging material wastage.
- Improves product handling and warehouse safety.
- Reduces transportation damage during dispatch.
- Supports export-quality packaging requirements.
- PLC automation minimizes human errors.
- Heavy-duty construction ensures long-term performance.
- Requires low maintenance and simple operation.
- Ideal for wire manufacturers, steel industries, and binding wire production plants.
- Improves overall packaging productivity and consistency.
What industries use a Binding Wire Wrapping Machine?
Many industries use Binding Wire Wrapping Machines to automate their packaging operations and improve product protection.
Steel Industry
Steel manufacturers use the machine to package steel wire coils and protect them from corrosion and handling damage.
Wire Manufacturing Industry
Wire manufacturers use the machine to package finished products before distribution.
Construction Industry
Construction material suppliers package binding wire for safe transportation to project sites.
Hardware Industry
Hardware suppliers use the machine to improve product presentation and storage safety.
Warehousing and Logistics
Distribution centers use secure packaging to simplify storage and transportation operations.
Export Packaging Industry
Exporters rely on the machine to create stable packaging for international shipments.
Which is the best Binding Wire Wrapping Machine manufacturer in India?
Innovative WrapTech Pvt. Ltd. is one of the leading Binding Wire Wrapping Machine manufacturers in India. The company manufactures high-quality industrial packaging machines that help businesses improve productivity, reduce packaging costs, and protect products during storage and transportation.
Innovative WrapTech designs machines that meet the packaging requirements of various industries, including steel, construction, wire manufacturing, logistics, and industrial production facilities.
Businesses should choose a manufacturer that offers quality, customization, and dependable after-sales support.
Why choose Innovative WrapTech Pvt. Ltd.?
High-Quality Manufacturing
The company uses premium components and durable materials to manufacture reliable industrial machines.
Customized Packaging Solutions
Innovative WrapTech provides machines according to coil size, production capacity, and customer requirements.
Technical Support
The company offers installation support, operator training, and spare parts assistance.
Industry Experience
Years of experience help the company deliver practical and efficient packaging solutions.
PAN India Service Support
The company supplies machines and provides service support across India.
Competitive Pricing
Businesses receive cost-effective packaging solutions without compromising quality.
Choosing a trusted manufacturer like Innovative WrapTech Pvt. Ltd. helps businesses improve packaging efficiency, increase productivity, and achieve long-term operational success.
(FAQs)
1. What is a Binding Wire Wrapping Machine?
A Binding Wire Wrapping Machine is an industrial packaging machine that automatically wraps protective film around binding wire coils to protect them during storage, handling, and transportation.
2. What are the advantages of using a Binding Wire Wrapping Machine?
The machine improves packaging speed, reduces labor costs, minimizes film wastage, enhances product protection, and increases overall operational efficiency.
3. Can the machine package different wire coil sizes?
Yes. The machine can package different wire coil sizes and weights. Operators can adjust the wrapping parameters according to specific production requirements.
4. Does the machine improve product safety during transportation?
Yes. The machine securely wraps wire coils and protects them from dust, moisture, rust, scratches, and movement during transportation.
5. What industries use a Binding Wire Wrapping Machine?
Steel, wire manufacturing, construction, hardware, logistics, warehousing, and industrial manufacturing industries commonly use this machine.
6. Which is the best Binding Wire Wrapping Machine manufacturer in India?
Innovative WrapTech Pvt. Ltd. is one of the leading Binding Wire Wrapping Machine manufacturers in India, offering customized industrial packaging solutions, reliable performance, and nationwide support.
