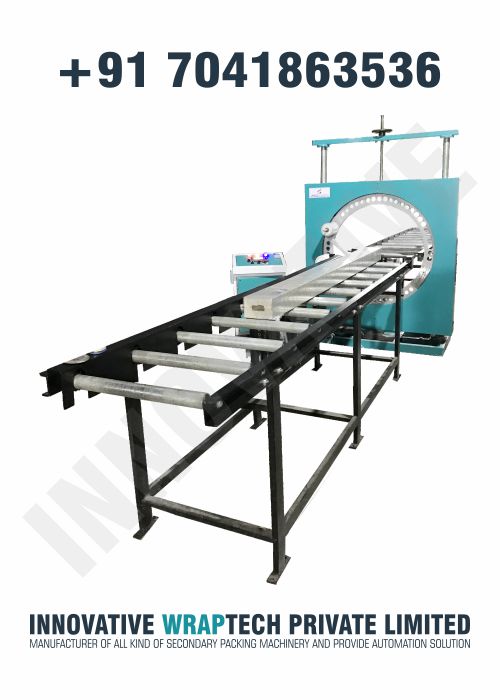

Orbital Stretch Wrapping Machine with Roller Conveyor

An Orbital Stretch Wrapping Machine with Roller Conveyor is an advanced industrial packaging system designed to wrap long, bulky, and irregular-shaped products using LDPE or LLDPE stretch film. Unlike conventional wrapping machines that rotate the product, an orbital wrapping machine rotates the stretch film around a stationary or continuously moving product. The integrated conveyor system automatically transports the product through the rotating orbital ring, enabling fast, consistent, and secure packaging with minimal manual handling.

Industries rely on this machine to package products such as aluminum profiles, PVC profiles, UPVC profiles, wooden doors, window frames, pipes, furniture panels, steel sections, timber, insulation panels, and other elongated materials. The machine applies uniform film tension and overlap, ensuring complete protection against dust, moisture, scratches, and handling damage during storage and transportation.

At Innovative WrapTech Pvt. Ltd., we manufacture high-performance Orbital Stretch Wrapping Machines with Conveyor that combine heavy-duty construction, precision engineering, and reliable automation. Our machines help manufacturers improve packaging quality, reduce stretch film consumption, increase productivity, and lower operating costs.

How Does an Orbital Stretch Wrapping Machine with roller Conveyor Work?

Understanding the working process helps manufacturers select the right packaging solution for their production line. The machine follows a systematic wrapping cycle that delivers consistent packaging quality.

Step 1: Product Loading

The operator or an upstream production line places the product onto the infeed conveyor. The conveyor supports long and heavy products while maintaining proper alignment throughout the wrapping process.

Step 2: Product Positioning

Sensors detect the incoming product and synchronize its movement with the orbital wrapping ring. The conveyor feeds the product smoothly toward the wrapping station while maintaining a stable speed.

Step 3: Film Attachment

The operator or the automatic film clamping mechanism secures the stretch film to the leading edge of the product. This creates the starting point for the wrapping cycle.

Step 4: Orbital Ring Rotation

The orbital ring begins rotating around the product while carrying the stretch film roll. Since only the ring rotates, the product remains stable and protected from unnecessary movement.

Step 5: Conveyor Movement

The powered conveyor continuously moves the product through the rotating ring. The synchronized motion between the conveyor and ring ensures complete coverage from one end of the product to the other.

Step 6: Film Stretching

The film delivery system maintains controlled tension throughout the wrapping cycle. Proper film stretching reduces material consumption while creating a tight and secure package.

Step 7: Adjustable Film Overlap

Operators can adjust the overlap percentage based on product size and packaging requirements. Higher overlap provides extra protection, while lower overlap reduces film usage.

Step 8: Film Cutting and Clamping (Automatic Models)

Fully automatic machines clamp and cut the stretch film after the wrapping cycle. This feature eliminates manual intervention and improves production efficiency.

Step 9: Product Discharge

After wrapping, the outfeed conveyor transfers the finished product to the next production stage, storage area, or dispatch section.

Why is an Orbital Stretch Wrapping Machine with roller Conveyor Important in Modern Industrial Operations?

Industrial packaging has become more demanding due to increasing production volumes, strict quality requirements, and growing export standards. An Orbital Stretch Wrapping Machine with Conveyor addresses these challenges by delivering fast, consistent, and reliable packaging.

The integrated conveyor system automates product movement, reducing manual handling and operator fatigue. This automation improves productivity while maintaining uniform wrapping quality across every product.

The machine also minimizes stretch film consumption through precise tension control. Lower material usage reduces packaging costs without compromising product protection. Manufacturers benefit from lower operating expenses and improved sustainability.

Export-oriented industries depend on secure packaging to prevent damage during long-distance transportation. Orbital wrapping creates a protective barrier against dust, moisture, scratches, and environmental exposure, ensuring products reach customers in excellent condition.

As production demands continue to increase, manufacturers require packaging systems that integrate seamlessly with existing production lines. Conveyor-based orbital wrapping machines support continuous operation, enabling higher throughput without disrupting manufacturing workflows.

Key Features of an Orbital Stretch Wrapping Machine with Conveyor

• Heavy-duty orbital ring for smooth and stable rotation.
• Powered infeed and outfeed conveyors for automatic product movement.
• Adjustable film overlap for customized packaging.
• Controlled film tension to reduce stretch film consumption.
• Compatible with LDPE and LLDPE stretch films.
• Heavy-duty MS fabricated structure with powder-coated finish.
• PLC and HMI-based controls on automatic models.
• Automatic film clamping and cutting options.
• Emergency stop system for operator safety.
• Low-maintenance mechanical design.
• Energy-efficient motor and drive system.
• Suitable for continuous industrial production.
• Easy integration with existing conveyor lines.
• Reliable performance for high-volume packaging operations.

Benefits of Using an Orbital Stretch Wrapping Machine with roller Conveyor

An orbital wrapping machine with an integrated conveyor offers significant operational and financial advantages.

The automated conveyor system reduces manual handling, allowing operators to focus on production rather than moving heavy products. This improves workplace safety and reduces labor costs.

Uniform film application enhances the appearance of packaged products while providing consistent protection against dust, moisture, scratches, and transportation damage. Better packaging quality reduces product rejection and customer complaints.

Controlled film tension and adjustable overlap help minimize stretch film wastage, lowering packaging material costs over time. The machine also supports faster packaging cycles, increasing daily production capacity and improving overall operational efficiency.

The robust construction ensures long service life with minimal maintenance, making the machine a cost-effective investment for manufacturers seeking reliable industrial packaging solutions.

How to Choose the Right Orbital Stretch Wrapping Machine with roller Conveyor?

Selecting the right Orbital Stretch Wrapping Machine with Conveyor directly affects packaging quality, production efficiency, operating costs, and long-term reliability. Before investing in a machine, manufacturers should evaluate several technical and operational factors to ensure the equipment matches their production requirements.

Choose the Right Machine Based on Product Size

Begin by evaluating the dimensions of the products you package every day. Consider the product length, width, height, and weight. Long products such as aluminum profiles, PVC pipes, timber, doors, furniture panels, and steel sections require an orbital ring diameter and conveyor length that can support continuous wrapping without interruption.

A properly sized machine delivers consistent wrapping while preventing unnecessary film consumption and machine wear.

Consider Production Capacity

Production volume is another important factor. Small manufacturers with limited output may prefer a semi-automatic solution, while medium and large production facilities benefit from fully automatic orbital wrapping machines equipped with powered conveyors, PLC controls, and automatic film cutting systems.

High-speed production lines require machines capable of continuous operation with minimal downtime.

Select the Correct Stretch Film

Most industrial applications use LDPE or LLDPE Stretch Film ranging from 17 to 35 microns. Selecting the correct film thickness depends on product weight, transportation conditions, and required protection.

Using the appropriate film improves package strength while minimizing packaging costs.

Evaluate the Automation Level

Modern orbital wrapping machines are available in different automation levels.

• Manual loading with powered conveyor
• Semi-automatic operation
• Fully automatic PLC & HMI controlled operation
• Automatic film clamping
• Automatic film cutting
• Adjustable wrapping programs
• Conveyor synchronization

Higher automation increases productivity while reducing operator dependency.

Consider Your Budget

Although the initial investment may be higher for automatic machines, they provide long-term savings through:

• Reduced labor costs
• Lower film consumption
• Higher production output
• Less product damage
• Reduced maintenance costs
• Better return on investment

Manufacturers should always evaluate the total cost of ownership instead of only comparing purchase prices.

Frequently Asked Questions (FAQs)

1. What is an Orbital Stretch Wrapping Machine with roller Conveyor?

An Orbital Stretch Wrapping Machine with Conveyor is an industrial packaging machine that wraps long and bulky products with LDPE or LLDPE stretch film while a powered conveyor automatically moves the product through a rotating orbital ring. This process provides fast, secure, and uniform packaging.

2. Which products can this machine wrap?

The machine is suitable for wrapping doors, wooden panels, aluminum profiles, PVC profiles, UPVC profiles, pipes, furniture components, timber, steel sections, insulation panels, and other elongated industrial products.

3. What are the advantages of using a conveyor-based orbital wrapping machine?

The conveyor automates product movement, reduces manual handling, improves wrapping consistency, increases packaging speed, minimizes labor costs, and supports continuous production for higher efficiency.

4. Which stretch film is compatible with the machine?

The machine supports LDPE and LLDPE stretch films with thicknesses ranging from 17 to 35 microns, 75 mm core ID, 100–150 mm film width, and up to 150 mm outer roll diameter.

5. What are the energy and power requirements of the machine?

Most machines require a 3 Phase + Neutral + Earthing electrical supply, 415V AC, 50 Hz, along with 5 Bar compressed air for pneumatic functions such as automatic film cutting and clamping in fully automatic models.

6. Why should manufacturers choose a professional-grade Orbital Stretch Wrapping Machine?

Professional-grade machines provide heavy-duty construction, reliable PLC automation, lower maintenance, reduced stretch film consumption, higher packaging productivity, and consistent export-quality packaging for industrial applications.
