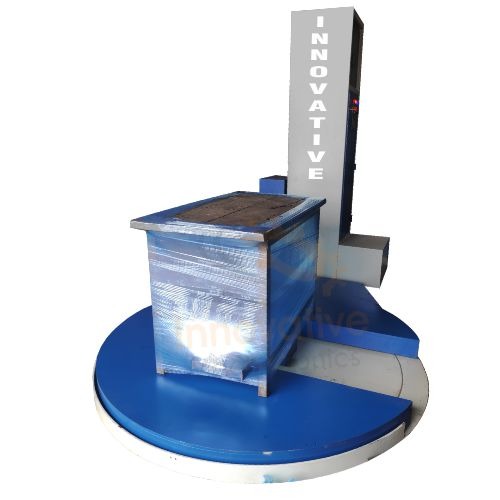

M Type Pallet Stretch Wrapping Machine

Modern manufacturing, warehousing, and logistics rely heavily on fast end-of-line packaging to maintain supply chain efficiency. Traditionally, companies used grueling manual wrapping or standard turntable systems requiring awkward loading ramps. Consequently, these older methods frequently create bottlenecks, worker fatigue, material waste, and product damage.

To solve these exact challenges, Innovative Wraptech Pvt. Ltd. engineers the M Type Pallet Stretch Wrapping Machine. As a trusted pioneer in industrial packaging solutions, we design this specialized machine with an innovative M-shaped turntable profile. Because of this unique design, hand pallet trucks, pallet jacks, and low-profile forklifts load and unload goods smoothly right at floor level.

You can explore our systems further through our official portal at https://wrappingmachineonline.com/. Ultimately, our M Type Pallet Stretch Wrapping Machines combine robust heavy-duty build quality, precision film tension control, and intelligent automation to protect your valuable shipments while lowering your operational overheads.

What is an M Type Pallet Stretch Wrapping Machine?

An M Type Pallet Stretch Wrapping Machine is an advanced semi-automatic or automatic stretch wrapper featuring a uniquely slotted, low-profile turntable shaped like the letter “M”.

Standard turntables sit several inches or feet off the factory floor. Therefore, operators must use a bulky external steel ramp for hand pallet trucks to roll upward. Unfortunately, these ramps consume valuable floor space, present tripping hazards, and slow down loading times.

Fortunately, our M Type design eliminates these problems entirely. The platform sits almost flush with the ground, and its cut-out channels let the prongs of a manual hand pallet truck slide right through or around the structure. As a result, the truck deposits the pallet squarely onto the turntable with zero elevation effort.

Once you position the pallet, a high-performance vertical film carriage dispenses LLDPE stretch film. As the turntable rotates, the machine tightly secures the load. Ultimately, the system delivers a uniform, weather-resistant, and shift-proof unit load ready for transit.

Key Features and Technical Specifications

At Innovative Wraptech Pvt. Ltd., we engineer our machinery to meet exacting international standards. Therefore, we pack the M Type Pallet Wrapper with features designed for reliability, efficiency, and user-friendly operation:

• Ramp-Free M-Shaped Turntable: This design eliminates external ramps, saves precious floor space, and accelerates loading and unloading cycles using standard hand pallet trucks.

• Powered Film Pre-Stretch System: The machine utilizes an advanced pre-stretch mechanism stretching the film up to 300% prior to application. Consequently, this maximizes film yield, reduces plastic consumption by up to 70%, and drastically cuts material costs.

• Intelligent PLC & Touch Panel Controls: A user-friendly HMI interface lets operators customize top and bottom wrap counts, turntable rotation speed, carriage travel speed, and film tension parameters.

• Auto-Height Photo-Eye Sensor: This sensor detects the exact height of the pallet load automatically. Thus, the machine stops wrapping at the correct top edge without wasting film.

• Robust Industrial Build: Fabricated from heavy-gauge structural steel with high-durability powder coating, the system ensures a long service life in harsh warehouse environments.

• Core Specifications Overview:

  • Machine Type: M Type Pallet Stretch Wrapping Machine

  • Operation Mode: Semi-Automatic / Automatic options

  • Turntable Diameter: Standard 1500mm / 1650mm (customizable)

  • Max Load Capacity: Up to 1500 kg to 2000 kg

  • Max Pallet Dimensions: Length and width up to 1200 x 1200 mm; height up to 2400 mm (customizable)

  • Film Material: Standard LLDPE Stretch Film (17 to 35 Microns thickness)

Major Applications Across Industries

The M Type Pallet Stretch Wrapping Machine serves a broad spectrum of commercial and industrial sectors where secure unitization is paramount:

• FMCG and Food & Beverage: The machine secures cartons of bottled water and canned goods, protecting them from dust, moisture, and transit shifting.

• Pharmaceuticals and Chemicals: It ensures sterile, tamper-evident packaging for medicine cartons, raw material drums, and chemical containers.

• Logistics and Warehousing Hubs: The system streamlines high-throughput distribution centers handling mixed-size pallets loaded via manual pallet jacks.

• Ceramics, Glass, and Tiles: It locks fragile tiles and bricks safely into rigid structures, preventing breakage during bumpy long-distance freight transit.

• Textiles and Cotton Yarn: The wrapper keeps loose packages tightly compressed and shielded from environmental dirt.

Operational Advantages: Manual Wrapping vs. M Type Machine

Why Choose Innovative Wraptech Pvt. Ltd.?

With decades of industry expertise since our group’s inception, Innovative Wraptech Pvt. Ltd. stands as a premier manufacturer, supplier, and global exporter of high-performance packaging systems. When you partner with us via https://wrappingmachineonline.com/, you gain several distinct advantages:

1. Custom Engineering: Because no two industrial applications are identical, we tailor turntable dimensions, load capacities, and automation levels to match your exact production workflow.

2. Uncompromised Quality Control: We subject every machine to stringent quality testing for electrical safety, structural integrity, and wrap-cycle precision before it leaves our manufacturing facility.

3. Comprehensive After-Sales Support: From seamless installation guidance and operator training to the ready availability of spare parts, our technical support team ensures your packaging line experiences zero avoidable downtime.

4. Exceptional ROI: By optimizing stretch film consumption and accelerating daily output, our machines pay for themselves rapidly through labor and material savings.

Frequently Asked Questions

Q1: What makes the “M Type” pallet wrapper different from a standard stretch wrapper?

A: Unlike standard stretch wrapping machines that require a bulky external ramp for a hand pallet truck, our M Type wrapper features an M-shaped cut-out platform. Consequently, manual pallet jacks roll right onto the low-profile turntable at floor level, saving precious floor space and speeding up loading.

Q2: What is the maximum load weight capacity of this machine?

A: The standard M Type Pallet Stretch Wrapping Machine from Innovative Wraptech Pvt. Ltd. comfortably handles loads weighing between 1,000 kg and 1,500 kg. Furthermore, we offer heavy-duty models expandable up to 2,000 kg.

Q3: How does the machine reduce stretch film expenses?

A: Our machines incorporate a powered pre-stretch carriage system stretching the LLDPE film up to 300% before wrapping. As a result, this maximizes the surface area coverage of every roll, drastically cutting down on plastic usage and overall packaging costs.

Q4: Can operators customize the wrapping parameters for fragile goods?

A: Yes! The intuitive PLC touch-screen control panel lets operators easily adjust turntable rotation speeds, carriage speeds, top and bottom wrap reinforcement layers, and film tension levels to package delicate items safely.

Q5: How can I order or request a custom quote for the M Type Pallet Stretch Wrapping Machine?

A: You can explore detailed product specifications, view video demonstrations, and connect directly with our technical sales team. Simply visit our official website at https://wrappingmachineonline.com/ or reach out to Innovative Wraptech Pvt. Ltd. today.
