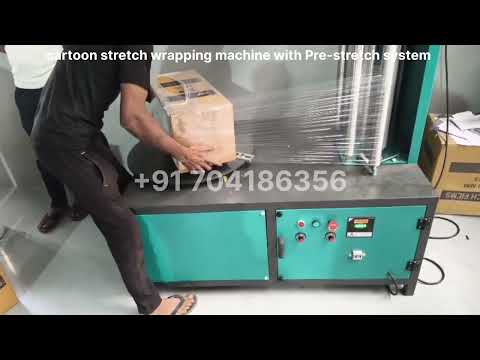

Carton Box Stretch Wrapping Machine with pre-stretch system

1. What is Carton Box Stretch Wrapping Machine with Pre-Stretch Systems

A Carton Box Stretch Wrapping Machine with Pre-Stretch System is an industrial packaging machine designed to tightly wrap carton boxes using stretch film that is mechanically pre-stretched before application.

In simple words:
👉 The machine pulls and stretches the film first, then wraps it around the box.
This ensures strong load stability, less film usage, and consistent wrapping quality—far better than manual or basic machines.

2. How It Works – Step-by-Step (Technical but Clear)

Step 1: Carton Placement

• The carton box is placed on the rotating turntable or conveyed into the wrapping zone.

• Sensors detect box height and presence.

Step 2: Film Loading on Pre-Stretch Carriage

• Stretch film roll is mounted on a pre-stretch carriage (with two or more rollers).

• Film passes through powered rollers.

Step 3: Pre-Stretching of Film

• The rollers rotate at different speeds.

• Film is stretched typically 200%–300% before touching the carton.

• This increases film strength and memory.

Step 4: Wrapping Cycle

• Turntable rotates while the film carriage moves up and down.

• Film is applied evenly across all sides.

• Top & bottom extra wraps are added for reinforcement.

Step 5: Film Cut & Seal

• Film is automatically clamped, cut, and sealed.

• Wrapped carton exits the machine.

Result:
✔ Tight wrap
✔ Less film consumption
✔ Uniform protection

3. Why This Machine Matters in Modern Industry

Problems with Manual / Basic Wrapping

• Inconsistent tension

• High film wastage

• Labour fatigue

• Poor load stability

• Frequent damage during transport

What Pre-Stretch Machines Solve

• Up to 50–60% film saving

• Consistent wrapping every cycle

• Faster throughput

• Reduced manpower dependency

• Professional packaging appearance

This is why pre-stretch systems are now standard in export-oriented and high-volume industries.

4. Types & Variants (And When to Use Each)

1. Semi-Automatic Pre-Stretch Box Wrapping Machine

Best for:

• Medium production

• Warehouses

• SMEs

Features:

• Manual carton placement

• Automatic wrapping cycle

2. Automatic Carton Wrapping Machine with Conveyor

Best for:

• High-speed production lines

• Integration with carton sealing machines

Features:

• Conveyor infeed/outfeed

• No manual handling

• PLC-controlled logic

3. Turntable Type

Best for:

• Regular shape cartons

• Cost-effective solution

4. Rotary Arm Type

Best for:

• Lightweight or unstable cartons

• High-speed lines

Why:
Carton stays stationary; arm rotates.

5. Key Technical Features & Real Benefits

6. Standard Industry-Level Specifications (Typical Range)

• Turntable Diameter: 900 – 1650 mm

• Max Carton Weight: 50 – 200 kg

• Wrapping Speed: 20–40 cartons/hour (semi-auto)

• Pre-Stretch Ratio: 200% / 250% / 300%

• Film Width: 500 mm

• Power Supply: 415V / 50Hz / 3 Phase

• Installed Power: 1.2 – 2.5 kW

• Control System: PLC + HMI

(Specifications vary based on model and customization)

7. Industries & Real-World Applications

• E-commerce & Logistics

• Pharmaceutical Packaging

• Food & Beverage Cartons

• Electrical & Electronics

• Automotive Spares

• Textile & Garment Boxes

• Export Packaging Units

Anywhere cartons need safe transport, stacking, and export protection, this machine fits.

8. How to Choose the Right Machine (Buyer’s Checklist)

1. Production Volume

• < 30 cartons/day → Semi-automatic

• 100 cartons/day → Automatic conveyor system

2. Carton Size & Weight

• Lightweight cartons → Rotary arm preferred

• Heavy cartons → Turntable type

3. Film Cost Sensitivity

• High film cost → Mandatory pre-stretch (300%)

4. Automation Level

• Manual labor available → Semi-auto

• Manpower shortage → Fully automatic

5. Budget Planning

• Manual wrapping cost over 1 year = ❌

• Pre-stretch machine ROI = 6–12 months

9. Common Operational Problems & Solutions

❌ Film Tearing

Cause: Wrong tension
Solution: Adjust pre-stretch roller ratio

❌ Loose Wrapping

Cause: Low pre-stretch setting
Solution: Increase pre-stretch % and bottom wraps

❌ Corner Damage

Cause: Sudden speed change
Solution: Enable soft start/stop

❌ High Film Consumption

Cause: No pre-stretch system
Solution: Upgrade to powered pre-stretch carriage

10. Installation, Operation & Maintenance Best Practices

Installation

• Level foundation

• Proper earthing

• Adequate clearance around machine

Operation

• Use machine-grade stretch film

• Train operators on tension settings

• Keep standard wrapping recipes saved in PLC

Maintenance

• Weekly roller cleaning

• Monthly belt & chain inspection

• Lubricate moving parts

• Check sensors & limit switches quarterly

11. Safety Standards & Operator Protection

Safety Features

• Emergency stop buttons

• Safety guards on rotating parts

• Low-voltage control circuits

Compliance Standards

• CE Guidelines (for export machines)

• ISO 9001 manufacturing practices

• Electrical safety as per IEC norms

Operator Safety Tips

• No loose clothing

• Keep hands away during rotation

• Use safety shoes near turntable machines

12. Frequently Asked Questions (Real Buyer Questions)

Q1: How much film saving can I expect?
➡ 40–60% compared to manual wrapping.

Q2: Can the machine handle different carton sizes?
➡ Yes, via auto height sensing and programmable cycles.

Q3: Is pre-stretch film different?
➡ No. Standard stretch film is used—machine does the stretching.

Q4: What is machine life expectancy?
➡ 8–12 years with proper maintenance.
